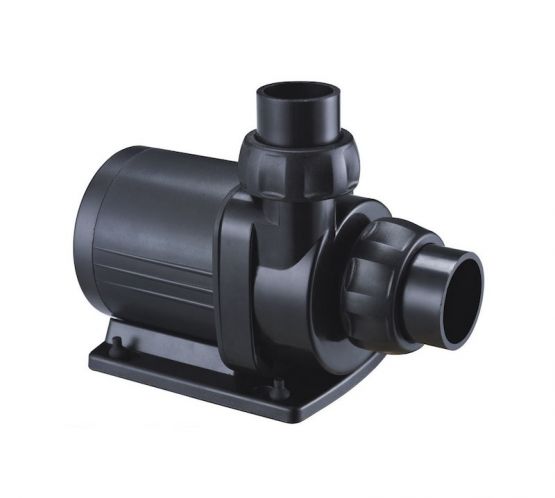

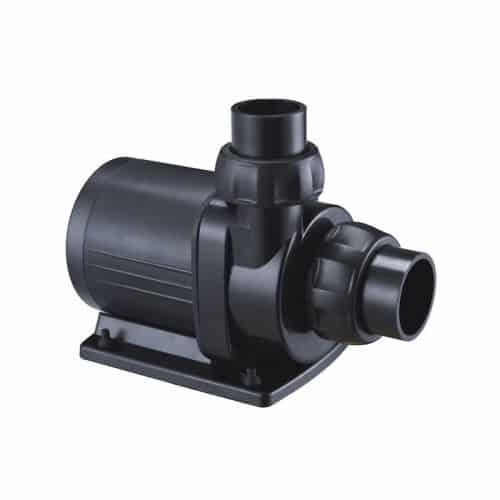

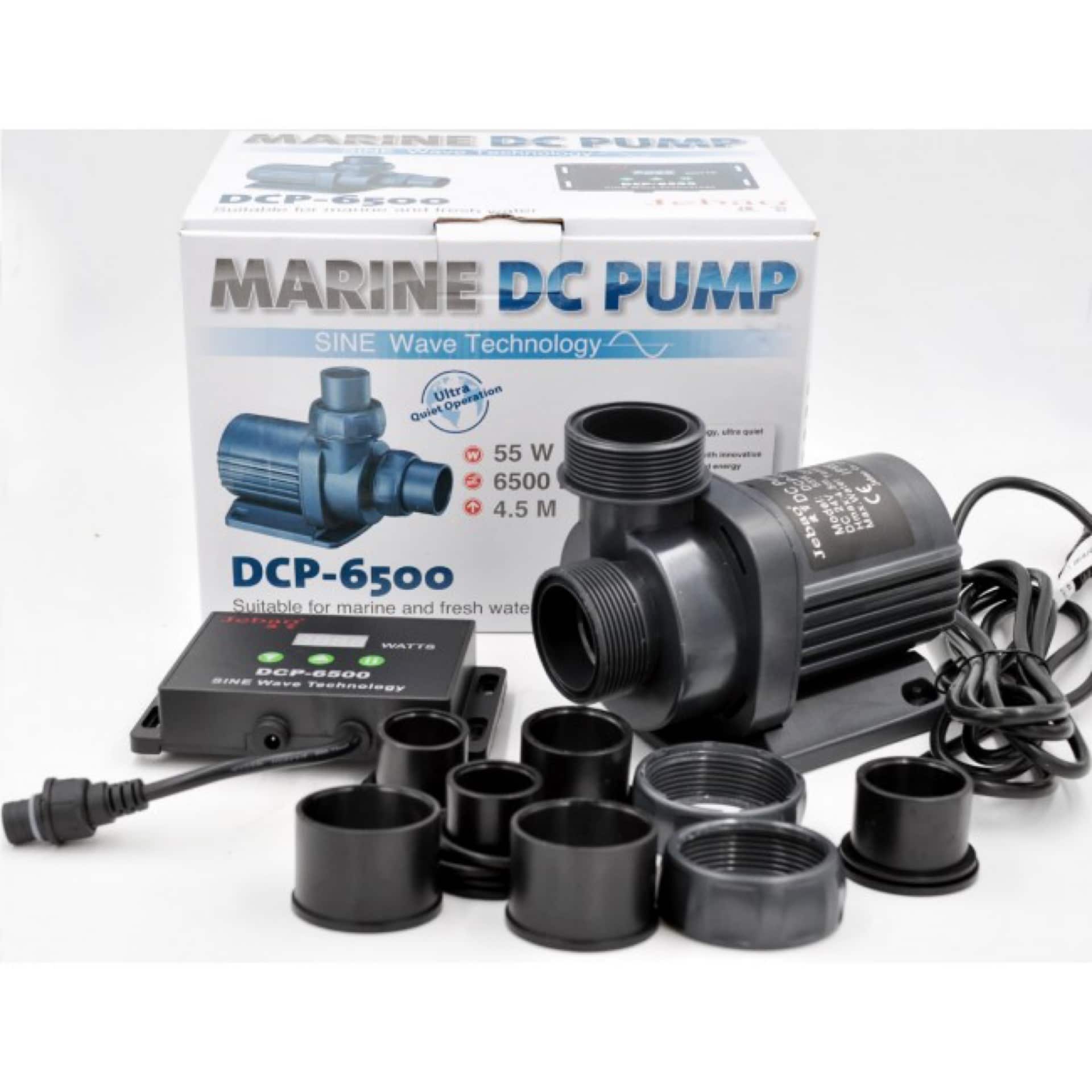

JECOD DCP6500 VARIABLE SPEED DC PUMP

Jecod "Professional" Range DC Pumps

These new pumps improve on the previous DCT pump design as follows:

• Sine Wave controller technology provides super quiet operation
• New Digital Controller- Speed Control Settings Between 30%-100% in 1% increments (DCP4000 has 8 speed controller)
• Digital display of power consumption.
• Suitable for external and internal operation
• Seals for input and output connections
• Improved Head Pressure Performance over DCT Models
• New Enclosed Impeller Design For a more Quiet Operation
• Energy Saving up to 65%
• IC Electronic Detection- Automatic Power Off Protection Upon No Water
• Wear Resistant Ceramic Shaft

• Features:

  • DCP-6500 (55W) Maximum flow rate of up to 6,500 litres/hour - adjustable from 1,950 - 6,000 litres per hour in 1% steps.
  • Electronic detection of no water enables automatic power-off protection
  • Motor protection if the rotor is blocked
  • Can be used in Marine and Freshwater applications
  • No copper elements
  • Long operation life is achieved by the use of wear-resistant ceramic shaft
  • Soft start operation - pump gradually builds up to set flow rate
  • Feed mode disables pump for 10 minutes
  • Speed settings (30% - 100%) in 1% steps with power consumption indication - the setting is retained if power is lost.

  Dimensions: L x W x H (mm):


  • DCP-6500 = 196 x 104 x 163
